Xlr Explained: Features, Types and Tips

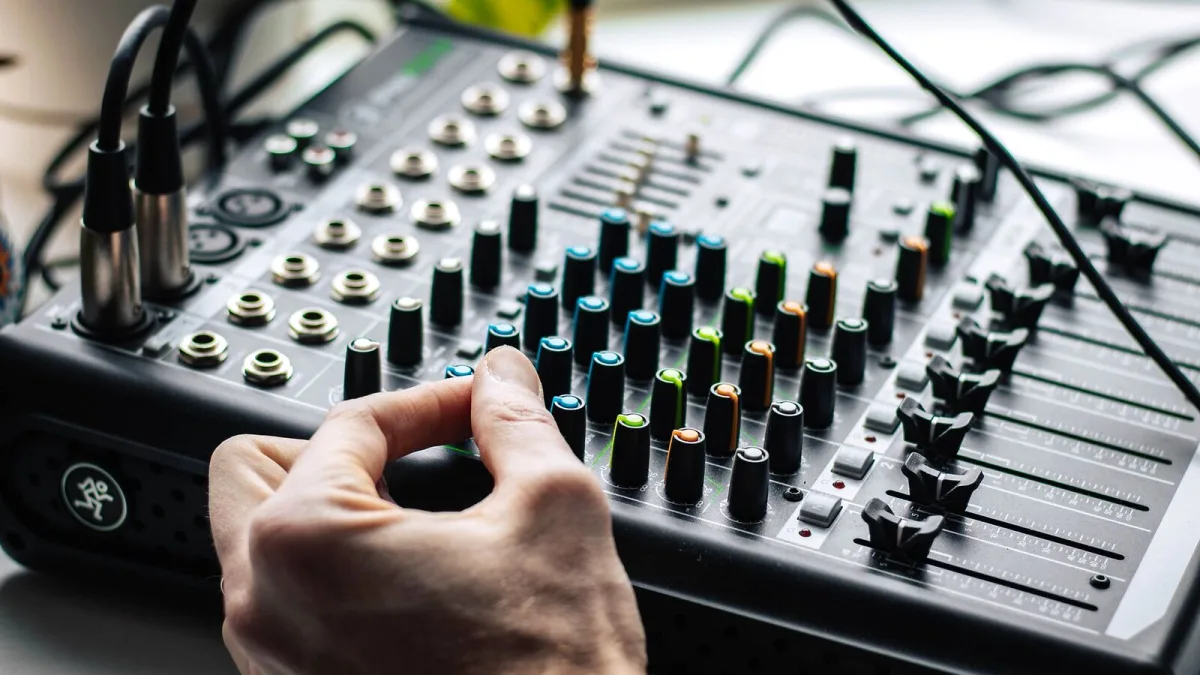

Every studio and stage I have ever worked in has the same soundtrack underneath the music: the soft click of an XLR connector locking into place. It is the least glamorous bit of kit you own, and also one of the most important — get it wrong and nothing else downstream matters. Here is what XLR actually is, the different types you will run into, and the practical tips that make it work reliably.

What XLR Actually Is

XLR is a family of circular, locking connectors that trace back to the old Cannon X connector series, refined over the decades by manufacturers like Neutrik into the standard you see on almost every piece of professional audio gear. In music production, when people say "XLR" they almost always mean the three-pin version used for microphones and balanced line-level connections.

That is worth being precise about, because it describes a connector shape, not a guarantee of sound quality, balanced wiring, or phantom power. A cable can physically have that shape and still be wired for something else entirely — it is the shape that locks in, not the promise.

The Three Pins, Decoded

Pop the shell off a standard mic cable and you will find three contacts doing three very specific jobs:

That flipped signal on pin 3 is the whole trick behind balanced audio. Any electrical noise a long cable picks up gets added equally to both pins 2 and 3. At the receiving end, pin 3 is flipped back the right way round — which also flips the noise it carried — and the two are combined. The music adds together; the noise cancels itself out. Engineers call this common-mode rejection, and it is the real reason XLR can run much further than an unbalanced cable without picking up hum.

Phantom Power, Explained Properly

Plenty of microphones need a small DC voltage — almost always +48V — sent up that very same cable to power their internal electronics. That is phantom power, and it travels equally on pins 2 and 3, which is precisely why it does not interfere with the audio signal riding alongside it.

Condenser mics generally need it. Standard passive dynamic mics do not. Passive ribbon microphones are the one case worth genuine caution — a faulty cable or dodgy patchbay can send phantom power somewhere it should not go, and older passive ribbons are the most vulnerable design to that fault. Modern active ribbons are often built to handle it, but the manufacturer's manual is always the final word, not a general rule of thumb.

Not All XLR Connectors Are the Same

Three-pin is the one you will meet constantly, but it is not the only member of the family:

• Three-pin — standard microphone and balanced line-level audio.
• Four-pin — turns up in intercoms, some headset systems and certain power arrangements.
• Five-pin — used for stereo microphone systems, some MIDI implementations and lighting control.
• Seven-pin and above — specialist microphone power and intercom systems.

Gender matters just as much as pin count. As a rule, outputs carry a male connector and inputs carry a female one — a mic's output is male, a mixer's input is female — which stops you accidentally plugging phantom power into somewhere it was never meant to go.

XLR vs TRS vs USB

It is a fair question: if a balanced quarter-inch TRS jack can carry the same signal, why bother with the locking connector at all? In practice, the two often do overlap on line-level gear, but XLR's locking shell and multi-pin design have made it the default for microphones specifically, where an accidental tug mid-performance is a genuine risk.

USB microphones sidestep the whole conversation by building the preamp and converter into the microphone itself, which is genuinely convenient for a single-mic setup. The trade-off is flexibility: an XLR microphone into a proper interface or mixer gives you the freedom to change preamps, run multiple mics, and route signal through outboard gear — none of which a USB mic can offer. If you are still deciding which route suits you, our beginner's guide to XLR walks through that decision in more depth.

Why It Has Lasted This Long

No single feature explains its staying power — it is the combination. A locking latch that will not shake loose on a moving stage. Solid strain relief. Enough pins for balanced wiring or phantom power. Chassis and cable versions that cover every mounting situation. None of that is exotic engineering; it is just consistently well solved, which is exactly why manufacturers such as Neutrik, alongside cable makers like Mogami, Canare and Sommer Cable, have built entire product lines around getting these unglamorous details right.

Getting the Best Out of Yours

A few habits go a long way with this gear:

• Always plug and unplug with phantom power off and the channel muted, to protect speakers and sensitive microphones alike.
• Check both ends are fully seated — a half-inserted connector is a classic source of intermittent crackle.
• Do not assume gold-plated pins or a thick jacket automatically mean better sound. Reliable construction and correct wiring matter far more than cosmetics.
• Keep signal cables away from power cables and transformers to avoid picking up hum in the first place.

If you want the full step-by-step version of that first bullet point, our guide to setting up and using XLR walks through the whole connection sequence properly. And if you are shopping for cables right now, our complete buyer's guide covers what actually matters when you are choosing one.

The Bottom Line

XLR is not complicated once the three pins and the locking shell make sense — it is simply a very well-engineered way to move a signal from one box to another without picking up noise along the way. Understand what each pin is doing, treat phantom power with a bit of respect, and you have got the one piece of studio kit that genuinely never goes out of fashion. For the mistakes that trip people up most often, see our piece on common XLR mistakes to avoid.
