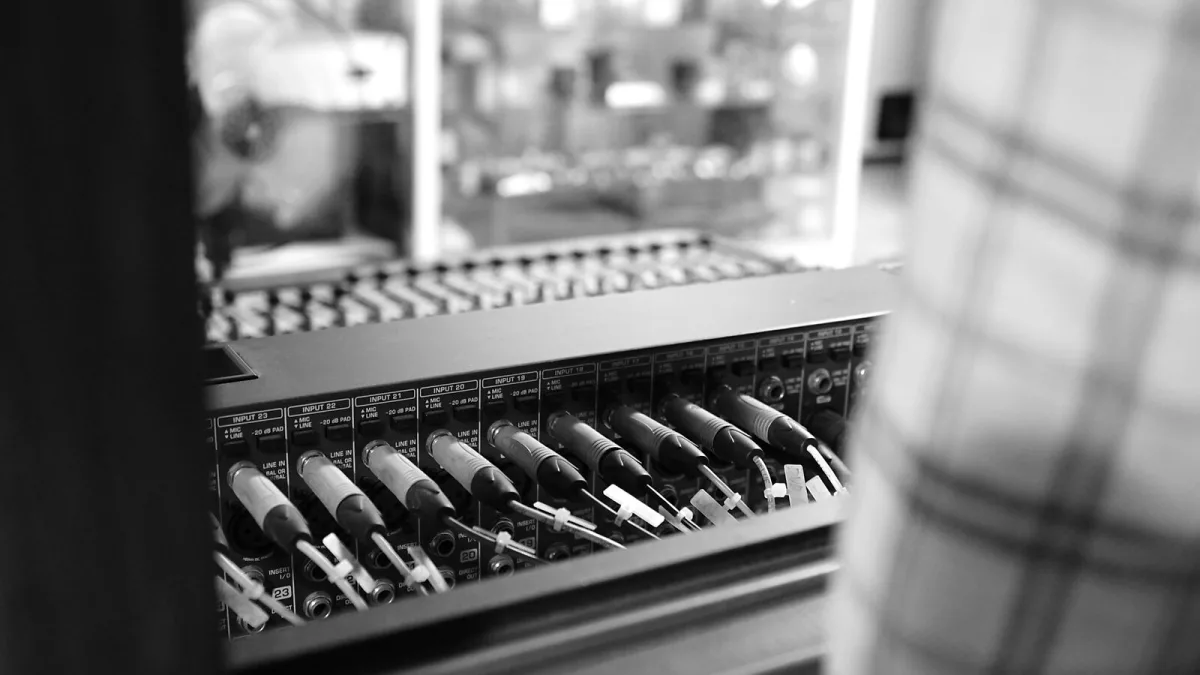

How to Set Up and Use Xlr
The order you plug in, gain up and switch on phantom power actually matters. Here's the exact step-by-step sequence for setting up XLR safely.
I have plugged in more microphones than I could ever count across pub gigs, touring rigs and studio sessions, and the sequence that keeps speakers safe and gear happy never really changes. Setting up XLR properly is not complicated, but doing the steps in the right order matters more than people realise. Here is exactly how to do it.
What You'll Need
- A microphone or other source with an XLR output
- An XLR cable in good condition, correctly wired at both ends
- A mixer, audio interface or preamp with an XLR input
- Phantom power available on that input, if your microphone needs it (most condenser mics do; most dynamic mics do not)
Step-by-Step: Connecting and Using XLR Safely
Follow this order every time and you will avoid the loud pops, blown tweeters and phantom-power mishaps that catch people out:
- Turn the channel down and mute monitoring. Pull the fader or gain right down, or mute the channel, before anything gets plugged in. This protects your speakers and your ears from any pop.
- Check phantom power is off, unless you already know you need it. Leaving it off by default is the safer habit, especially around ribbon microphones and unfamiliar gear.
- Connect the XLR cable fully. Line up the male and female ends, push until the latch clicks, and give it a gentle tug to confirm it has actually locked — a half-inserted connector is the single most common cause of crackle.
- Set the input gain conservatively. Start low. It is far easier to bring a quiet signal up than to recover from clipping a signal that started too hot.
- Enable phantom power only if the microphone genuinely requires it. Switch it on, then give the microphone a second or two to settle before you start relying on the signal.
- Raise the channel level gradually while checking your meter, rather than jumping straight to where you think it should sit.
- Before disconnecting, mute the channel and switch phantom power off again if it is not needed for the next source. Then unplug.
That sequence looks fussy written out in full, but in practice it becomes automatic within a few sessions — and it is the reason experienced engineers rarely blow a speaker or a mic capsule.
Getting Gain Staging Right
The most common mistake at step four above is compensating for a quiet source by cranking output level instead of fixing input gain. Set your input gain so a normal performance sits comfortably in the healthy part of your meter, with headroom for the loud moments. Everything downstream — EQ, compression, the final mix — works better when it starts from a properly gained signal, and no amount of processing fixes a badly gained one afterwards.
Phantom Power: When and How
Phantom power is a small DC voltage, almost always +48V, sent up the same cable as the audio signal to power a microphone's internal electronics. Condenser microphones generally need it; standard dynamic microphones do not. Passive ribbon microphones deserve real caution — a faulty cable or patchbay can occasionally send phantom power somewhere it should not, and older passive ribbon designs are the most vulnerable to that fault. If you are working with a ribbon mic and are not certain it is phantom-safe, check the manufacturer's manual rather than guessing. For the fuller picture on how phantom power actually works, our explainer on XLR covers the pin-by-pin mechanics.
Troubleshooting a Noisy Connection
If something sounds wrong once everything is plugged in, work through this before assuming the gear itself is faulty:
| Symptom | Likely cause and fix |
|---|---|
| Crackling or intermittent signal | Check both ends are fully seated; try a different, known-good cable |
| Constant hum | Move signal cables away from power cables and transformers; try a different power outlet if you suspect a ground loop |
| No signal at all | Confirm the input is actually receiving signal and not routed as an insert or AES3 digital connection |
| Very weak signal | Check gain staging before assuming the microphone or cable is broken |
A Quick Note on Cable Care
Coil cables loosely rather than wrapping them tightly elbow-to-hand, store them somewhere they will not get trodden on, and inspect the connectors occasionally for damaged pins or a latch that no longer grips firmly. A cable that has been looked after will outlast several cheaper replacements. If you are shopping for new ones, our buyer's guide to XLR covers exactly what to check before you buy.
The Bottom Line
Setting up XLR safely comes down to one habit: gain and phantom power off before you plug in, and off again before you unplug. Everything else is just good gain staging and a properly seated connector. Stick to that order and you will get reliable, clean signal every single time, without the pops and mystery hums that catch out anyone who skips a step. If you are still getting familiar with the basics first, our beginner's guide to XLR is a good place to start before you dive into a full setup.
