Pa Subwoofer Explained: Features, Types and Tips

A PA subwoofer is the bit of the rig that makes your chest move. Strip it out and the mix goes thin, kick drums lose their punch, and bass guitars disappear into the treble. Get it right, though, and the whole system snaps into place — not just louder, but physically bigger. This guide explains what a PA subwoofer actually does, the different types you'll encounter, and the tips that stop beginners (and plenty of experienced engineers) making the same avoidable errors.

What a PA Subwoofer Does

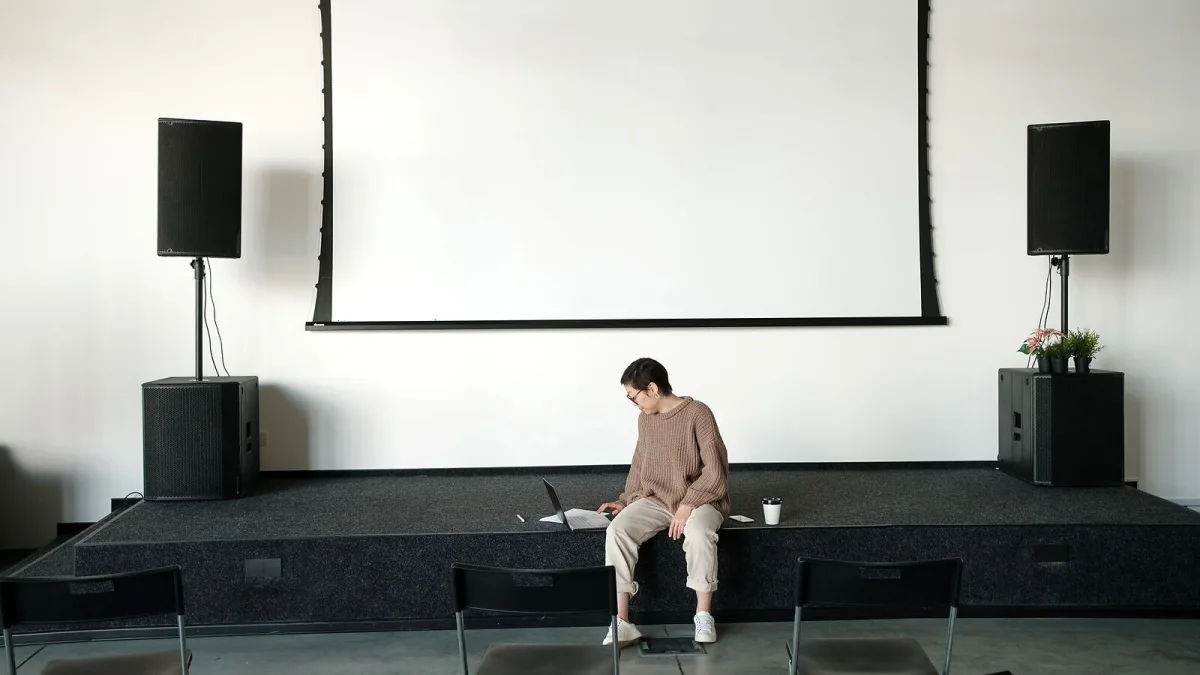

A PA subwoofer — short for subwoofer in a public address system — is a loudspeaker cabinet designed to reproduce low frequencies, typically from around 35 Hz up to 100–120 Hz. The full-range tops (the main cabinets on sticks or flown above the stage) hand off below a set crossover frequency — the point at which one speaker stops and the other takes over — and the sub handles everything below that.

Why split the signal at all? Because moving large quantities of air at very low frequencies requires a big, heavy driver and a large enclosure. Trying to make one box do everything — from the crack of a snare to a 40 Hz bass note — is a compromise on both ends. Dedicated sub cabinets do the low end properly, and dedicated tops cover the mid-high range without having to lug around a driver built for bass.

Active vs Passive PA Subwoofers

The first fork in the road is whether the cabinet has an amplifier built in (active) or relies on an external power amp (passive).

• Active (powered) subwoofers — the amplifier, DSP (digital signal processing) and crossover are all inside the cabinet. You send them a line-level signal from your mixer, and they handle the rest. Most modern club-level and portable rigs use active units because setup is quicker and the amplifier is matched to the driver from the factory.
• Passive models — the cabinet contains only the driver(s). You supply an external power amplifier, set the crossover in your signal chain, and wire it up yourself. Passive systems give more flexibility over amplifier choice and are typically found in fixed installation work where the amp rack lives in a machine room out of sight.

For most working musicians, mobile engineers, and bands running their own PA, an active model is the practical choice. There's no separate amp to carry, no crossover settings to second-guess, and you can return it if the driver fails.

Driver Size and Enclosure Design

PA subwoofer cabinets typically house one or two woofer drivers in sizes from 12 to 21 inches. The most common configurations are:

• 12-inch — compact, light enough to manage solo, suits small venues and compact all-in-one rigs.
• 15-inch — the workhorse for most mid-size live situations: pub function rooms, small festivals, outdoor markets.
• 18-inch — the default for club and concert touring rigs. Deep extension, serious output.
• 21-inch — used in large-scale touring and outdoor festivals where maximum sub-bass extension (down to the low 30s in Hz) is needed.

Enclosure design matters too. Vented (ported) cabinets extend low-frequency output and are the most common type. Horn-loaded designs use a folded horn path to dramatically increase efficiency — you get more SPL (sound pressure level, measured in dB) from the same amplifier wattage, but at the cost of size, weight and often extension at the very lowest frequencies.

Key Specifications Explained

When you're reading a spec sheet, these are the numbers that actually tell you something useful:

• Frequency response — the range of frequencies the cabinet reproduces, usually stated with a tolerance (e.g. ±3 dB or –10 dB). A cabinet listed at 35 Hz–120 Hz (–10 dB) extends to 35 Hz before it rolls off significantly, not that it plays flat to 35 Hz.
• Maximum SPL — how loud the cabinet gets before it distorts or thermally limits. Quoted in dB @ 1 metre. Treat manufacturer figures as optimistic by a few dB.
• Power handling — RMS (continuous) and peak figures. Match to your amplifier's RMS output at the cabinet's impedance for safe, long-term use.
• Impedance — 4 or 8 ohms for passive cabinets. Matters for pairing with the correct amplifier channel and for daisy-chaining multiple cabinets safely.

Deployment Tips for Better Results

Where you place it matters almost as much as which cabinet you buy. A few principles that make a real difference:

Ground Stacking

Placing the cabinet directly on the floor couples it to the boundary, effectively giving you a free 3–6 dB of bass boost. That's useful at outdoor festivals and large venues. In a small room with a live acoustic, it can mean too much boom — use the DSP bass-shelf to compensate.

Placement and Stereo Coverage

Sub frequencies are largely non-directional below around 80 Hz — a single, centrally placed unit usually sounds more even than two separate subs panned left and right, because two spread subs create comb filtering (interference patterns where the waves from each cabinet cancel or reinforce depending on where you're standing). Mono sub is the standard recommendation for most live rigs.

Cardioid Arrays

At larger shows with multiple sub cabinets, engineers often deploy a cardioid array — a technique that uses deliberate delay and polarity inversion on a rear-facing cabinet to cancel bass behind the PA, directing output towards the audience instead. This dramatically reduces on-stage low-end wash and protects vocalists from sub-bass feedback. It requires DSP processing and accurate delay settings, but the results are striking.

Set the Crossover Correctly

Most active PA subwoofers have a built-in crossover somewhere between 80 Hz and 120 Hz, and many allow you to adjust it. The crossover point should be set so the sub and tops overlap cleanly. Listen for a hole (too low a crossover) or a hump (too high). Many engineers settle around 80–100 Hz for general live work.

Live PA vs Home Hi-Fi Subs

It's worth being clear on why you can't simply use a home cinema or hi-fi sub for live work. A home unit is designed for a quiet domestic room, maximising detail and low distortion at comfortable listening levels. A PA subwoofer is built for sustained high SPL in noisy environments — the drivers are stiffer, the cabinets are heavier, the amplifiers run hotter and harder. The two aren't interchangeable in any realistic sense.

Explore the Full Topic

This overview covers the foundations — but there's plenty more to dig into depending on where you are in your PA journey. If you're ready to start spending, the complete buyer's guide to PA subwoofers walks through every spec and decision point in detail. After that, the best PA subwoofers for the money covers what to look at at different price points. If you're completely new to all of this, start with the beginner's guide to PA subwoofers — it takes nothing for granted. And whether you're new or experienced, it's worth checking common sub mistakes to avoid before your next gig.

The Bottom Line

A PA subwoofer handles the frequencies that give live music its physical weight. Understanding the difference between active and passive, how driver size affects output and extension, and how placement changes what the audience hears — that's the core of it. The rest is fine-tuning, and the more gigs you do with an ear on the sub's contribution, the better your instincts get.
