How to Set Up and Use Truss Rod

Adjusting the truss rod is one of the most useful maintenance skills a guitarist can develop. It is not complicated, but it requires care, the right tools and a clear method. This guide takes you through the process from start to finish.

What You Will Need

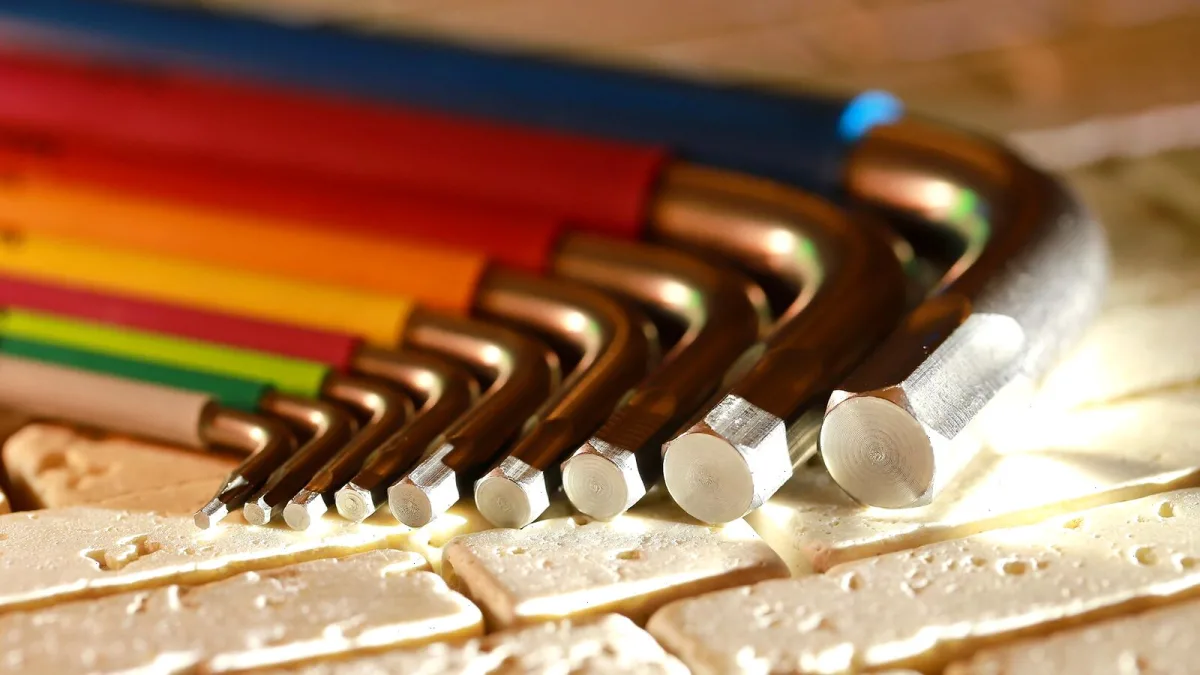

• The correct adjustment tool for your guitar (hex key / Allen key, Phillips screwdriver or Fender-style nut driver — check your manual)
• A tuner
• A feeler gauge or business card (for checking relief)
• Good lighting

Do not begin without the right tool. Using the wrong size or type risks stripping the adjustment nut — a costly and avoidable mistake.

Step-by-Step: How to Adjust Your Truss Rod

1. Tune the guitar to pitch.

   The neck must be under normal string tension during assessment. If it is not tuned, your relief reading will be inaccurate. Tune to your usual pitch and string gauge before checking anything.

2. Locate the adjustment access point.

   Most modern electric guitars have headstock access — look for a small cover plate or recess at the headstock end. Many acoustics and some electrics access at the heel of the neck, which may require removing the neck on bolt-on designs. Confirm the location before searching.

3. Check current neck relief.

   Hold the lowest string down at the first fret with one hand, and at the fret where the neck meets the body (around the 14th fret on an acoustic, 17th–19th on an electric) with the other. Look at the gap between the string and the frets around the 7th or 8th fret. A small gap — roughly the thickness of a business card or 0.3–0.5 mm — is typical and appropriate. No gap indicates a straight or back-bowed neck; a large gap indicates too much forward bow.

4. Decide which direction to adjust.

   If there is too much forward bow (high action in the middle of the neck, large gap at the 7th fret): tighten the nut clockwise to increase truss rod tension and reduce relief. If there is too little relief or back-bow (fret buzz low and middle, no gap): loosen the nut counter-clockwise to allow more forward relief. On most instruments, the direction is viewed looking from the headstock toward the body — but confirm this for your specific guitar.

5. Make a small adjustment — no more than a quarter turn.

   The adjustment nut controls a precision mechanical system. Large sudden movements are never appropriate. Turn the nut a quarter turn at most, then stop. The rod should move smoothly without unusual resistance. If it feels very stiff or refuses to turn, stop immediately — do not force it.

6. Retune and check relief again.

   After any adjustment, retune the guitar to pitch before reassessing. The neck takes a moment to settle. If the relief is still not right, make another small adjustment in the same direction and check again. Repeat until the gap at the 7th fret is appropriate.

7. Recheck intonation and action.

   Changing neck relief affects overall playability and may interact with saddle height. After the neck settles, check that the guitar still plays and intones correctly across the full length of the strings. Minor saddle adjustments may be needed.

Signs That Something Is Wrong

Stop and seek professional advice if:

• The adjustment nut is very stiff or will not turn
• You hear a creak or crack during adjustment
• The truss rod turns freely but the neck does not change
• The neck has a twist (different relief on bass and treble sides)
• There is visible damage, swelling or a crack in the neck

A broken, stripped or seized adjustment mechanism is not something to push through. The repair is significant and should be handled by a qualified technician.

What This Process Cannot Fix

Adjusting neck curvature addresses one variable in a setup involving several. If fret buzz persists after achieving appropriate relief, the cause is likely at the nut, saddle, frets or neck angle — not curvature. Each of these requires a different approach.

For context on what the different rod types do and how they work, see the full explainer. For a first-time overview of what to expect, the beginner's guide is a useful starting point. And for common errors to avoid, common mistakes to avoid covers the most important ones.

Truss Rod Adjustment: Summary

Check relief while tuned to pitch. Identify the direction of the problem. Use the correct tool. Adjust in small increments. Retune and recheck before adjusting further. Know when to stop and get professional help. Done carefully, the process is straightforward and keeps the guitar playing well.
